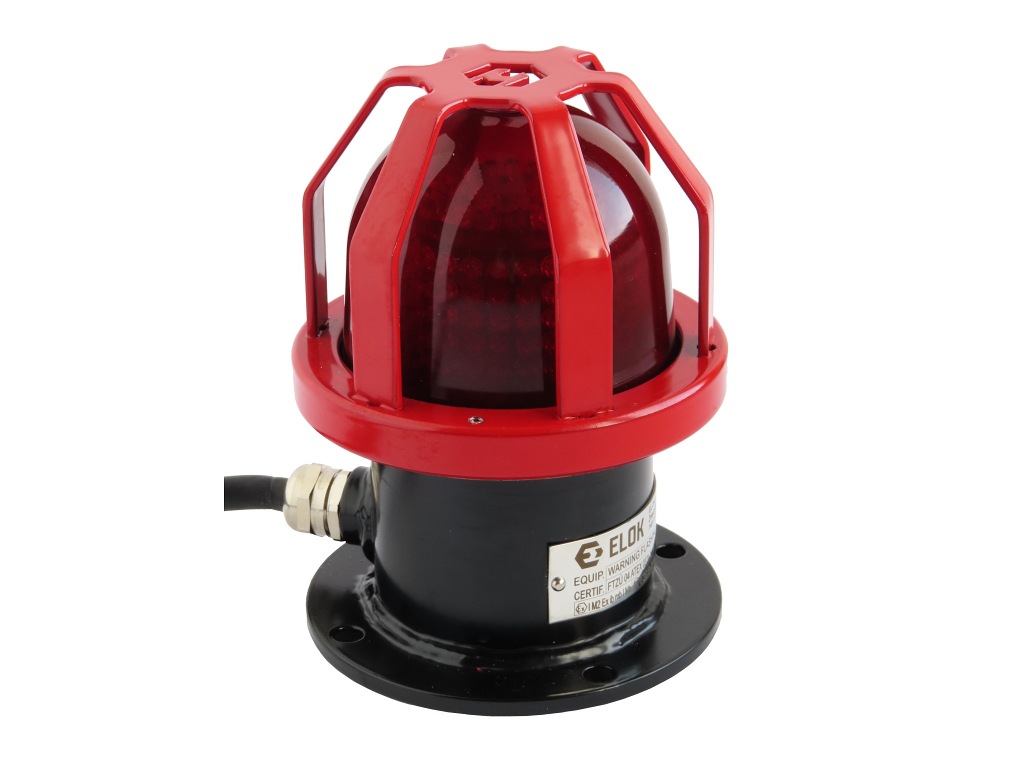

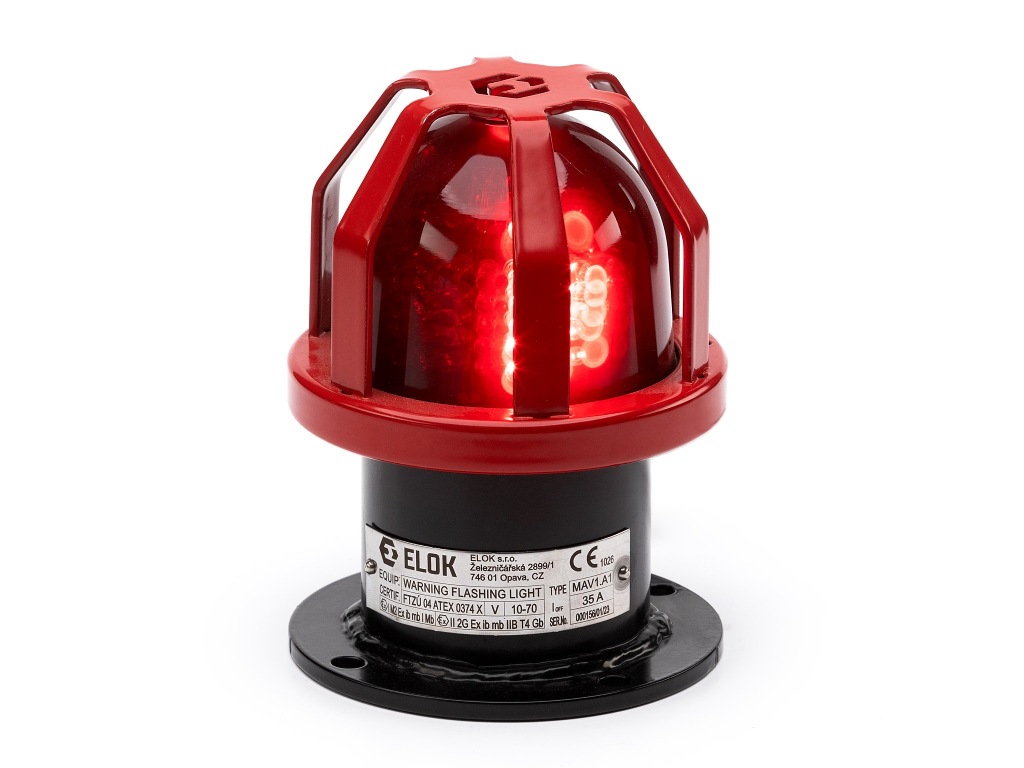

Rotating Beam Light – MAV 1.1
Rotating Beam Light – MAV 1.1Rotating Beam Light – MAV 1.1

Rotating Beam Light – MAV 1.1

02430-00-001

Modern high intensity LED light with traditional red “rotating” beam but with no moving parts.Wide operating input voltage range (10 - 70 Vdc)No moving parts - highly vibration resistantOperating environment -10 °C to +50 °CIP54

Need another solution? Contact Us
   I M2 Ex mb ib I Mb; II 2G Ex mb ib IIB T4 Gb

Modern high intensity LED light with traditional red “rotating” beam but with no moving parts.

  • Wide operating input voltage range (10 – 70 Vdc)
  • No moving parts – highly vibration resistant
  • Operating environment -10 °C to +50 °C
  • IP54
Ex Zone
1
Protection
I M2 Ex mb ib I Mb
II 2G Ex mb ib IIB T4 Gb
Ingress Protection
IP54
Ambient Temperature
-10 °C to +50 °C
Storage Temperature
-20 °C to +60 °C
Rated Voltage Range
10 - 70 Vdc
Power Consumption
3 W
Internal Protection
Fuse T0.5A
interrupting rating 35A
Cable Type
3-core, 1.5 mm, o 10 mm
Cable Length
2m
terminated with crimped leads
Dimensions
o 115 x 154 mm
Weight
2.7 kg
Installation
M8 bolts 4x
Dome
Hardened Glass
Beam Colour
Red
Body
Steel
Surface Finish
Powder Paint
Name Designation Valid from Expiry
TechSpec 205-1607 Rotating Beam Light (EN)11.11.2016-
