Ex Horn

Download Full Product CatalogueCatalogue
Ex Horn
Ex HornEx Horn

Ex Horn

03011-00-003

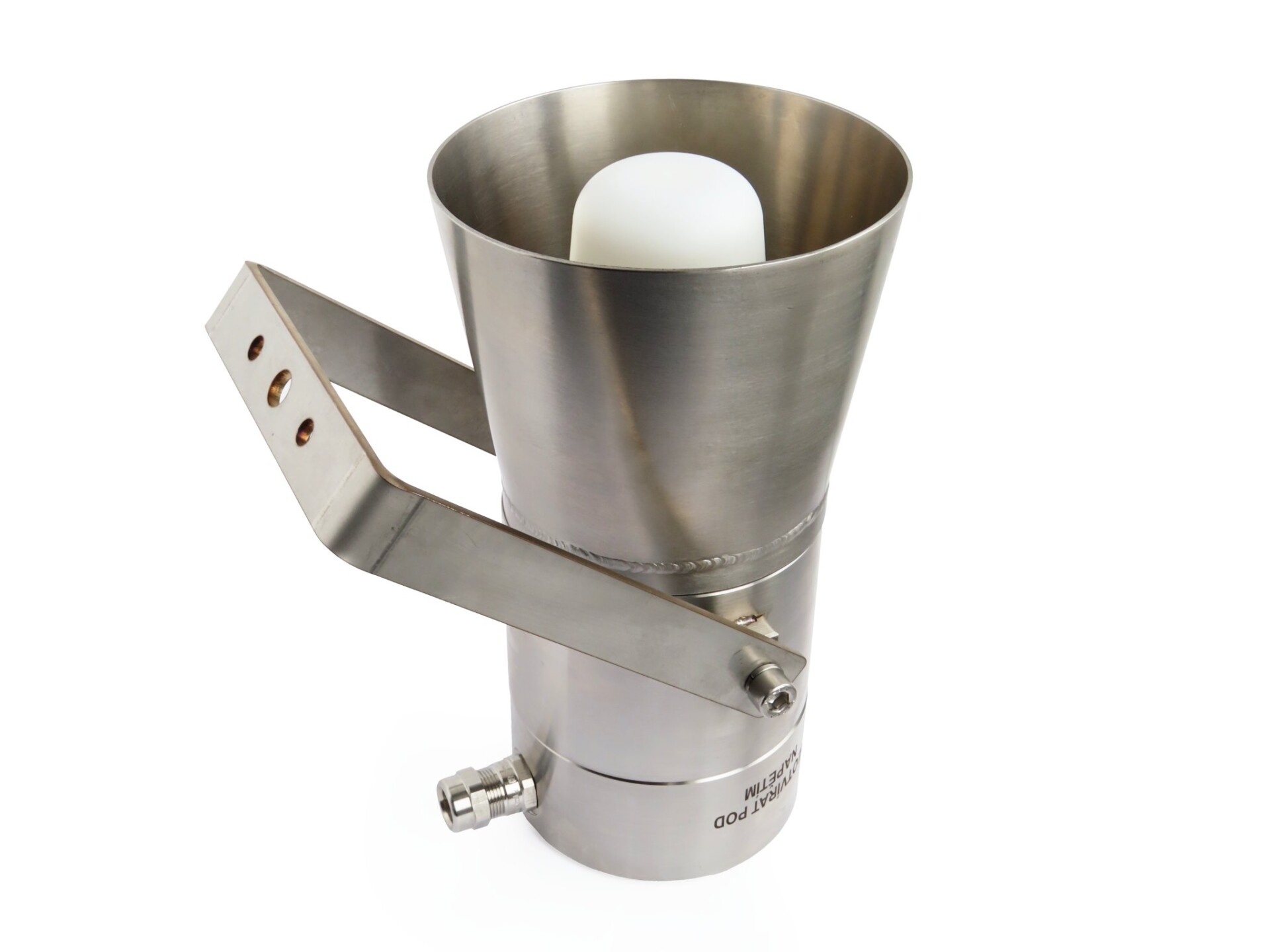

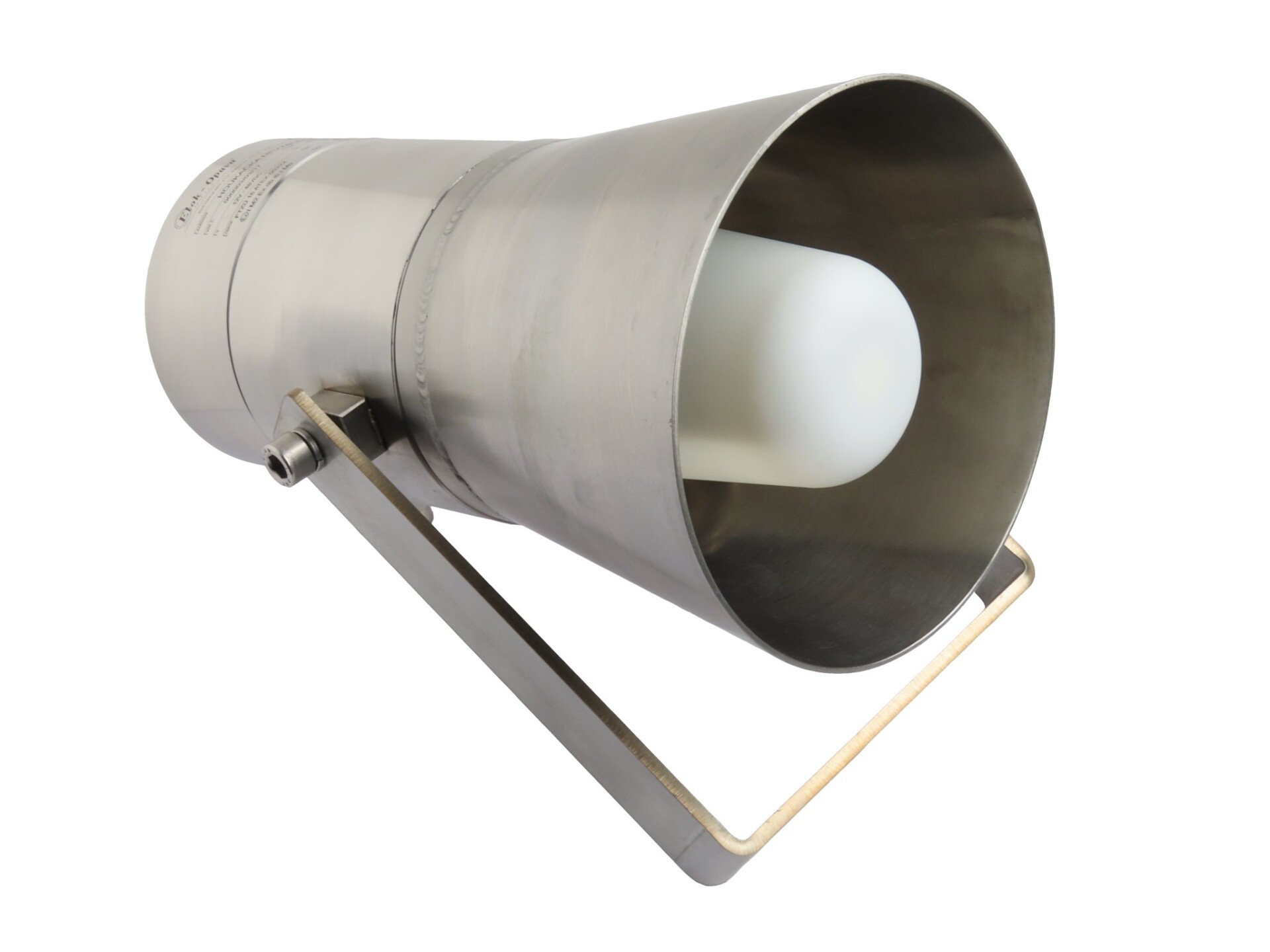

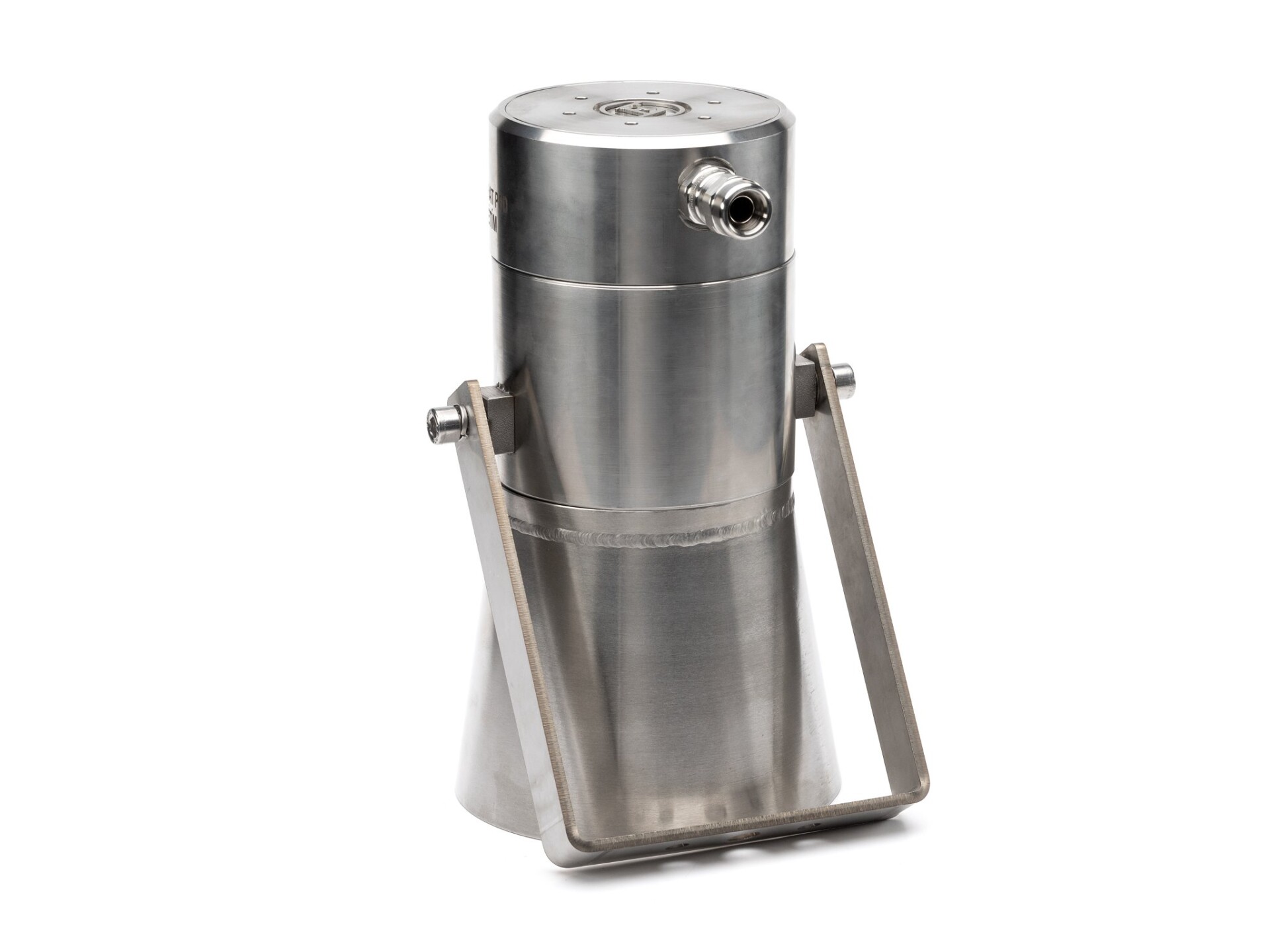

The ATEX Horn is designed for use in potentially Explosive Atmospheres and harsh environments for Zone 1 and Zone 2, especially for mining applications.

Need another solution? Contact Us
   I M2 Ex db ib I Mb, II 2G Ex dv ib IIB T4 Gb

Introducing our ATEX Horn, designed for use in potentially Explosive Atmospheres and harsh environments in Zone 1 and Zone 2.  This horn finds many applications, especially in mining, and including the indication of industrial process progress, vehicle movement and other hazards.

  • High acoustic intensity up to 115dB
  • 32 sound options
  • Robust and maintenance free operation
  • Wide voltage range 12V – 48V

ESHOP

Protection
II 2G Ex dv ib IIB T4 Gb I M2 Ex db ib I Mb
Ingress Protection
IP65
Ambient Temperature
-20 C to +40°C
Storage temperature
0°C to +40°C
Voltage range
12 V ~ 48 V DC
Dimensions
190 mm x 285 mm
Weight
9,5 Kg
Name Designation Valid from Expiry
Technical specification Ex Horn--
